Fascia Assembly

Fascia Assembly
Fascia Assembly Fascia Assembly

Large Image :  Fascia Assembly

Product Details:
Brand Name: NCR
Model Number: 445-0749702
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Delivery Time: 5-8 work days

Fascia Assembly

Description
High Light:

445-0741741 Fascia Assembly

,

Fascia Assembly 445-0742884

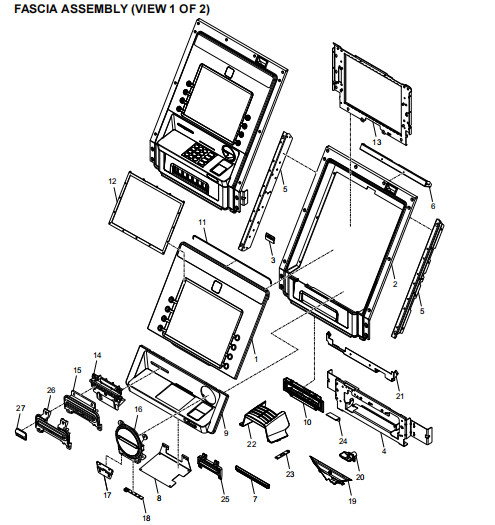

FASCIA ASSEMBLY (VIEW 1 OF 2)
1 445-0749702 FASCIA FDK ASSY - GASKET
2 445-0741477 FASCIA SURROUND - PAINTED
2 445-0778375 FASCIA SURROUND - PAINTED (POSTE ITALIANE)
3 445-0749639 BRKT - FASCIA CLAMP
4 445-0756860 ASSEMBLY, SHUTTER BULKHEAD
5 445-0749225 STRUT - FASCIA SIDE
6 445-0750101 STRUT - FASCIA TOP
7 445-0740518 BARCODE SHELF PAINTED
8 445-0762045 MTG - KEYPAD
* 9 445-0740900 FASCIA - SHELF ASSY PAINTED
* 9 445-0778452 FASCIA - SHELF ASSY PAINTED (POSTE ITALIANE)
* 10 445-0742614 MOULDING ASSY - SHUTTER INTERFACE (DISPENSER/PPD)
GREEN MEI
* 10 445-0752947 MOULDING ASSY - SHUTTER INTERFACE (DISPENSER/PPD)
BLUE MEI
11 445-0749705 GASKET - FASCIA TOP
12 445-0741741 FASCIA GLASS MTG
13 445-0760113 MTG ASSY (STD) - DISPLAY
* 14 445-0777986 MOULDING RECEIPT GUIDE - REAR (STIRLING)
* 14 445-0776621 REC EXIT MOLD REAR (BARCODE) - MACHINED
* 15 445-0742884 RECEIPT INSERT ASSY GASKET
* 16 445-0746256 IMCRW INSERT ASSY GASKET, R/W
17 445-0743071 MEI HOLDER
* 18 009-0026616 MEI
19 445-0738860 MOULDING - AIRFLOW COVER
20 445-0738862 MOULDING - AIRFLOW HOSE END
21 445-0752914 STRUT - FASCIA BOTTOM
* 22 445-0749664 EPP SHIELD PAINTED WITH GASKET
* 22 445-0778379 EPP SHIELD PAINTED WITH GASKET (POSTE ITALIANE)
23 445-0748950 PIN SHIELD MTG PLATE
24 445-0740515 LENS - BARCODE/CASH CAMERA
25 445-0758163 RECEIPT PRINTER BLANK ASSEMBLY WITH GASKET
26 445-0782513 RECEIPT GASKET ON MOULDING ASSY
27 445-0781055 BARCODE COVER ASSEMBLY

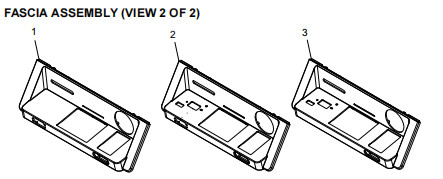

FASCIA ASSEMBLY (VIEW 2 OF 2)
* 1 445-0749232 FASCIA - SHELF ASSY (CASH CAM)
* 2 445-0762168 FASCIA SHELF ASM (ALPHA/CASHCAM)
* 3 445-0762172 FASCIA SHELF ASM (ALPHA)
