Large Image :  Cabinetry Assembly

Product Details:
Brand Name: NCR
Model Number: 445-0738536
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Delivery Time: 5-8 work days

Cabinetry Assembly

Description
High Light:

445-0738536 Cabinetry Assembly

,

NCR Cabinetry Assembly

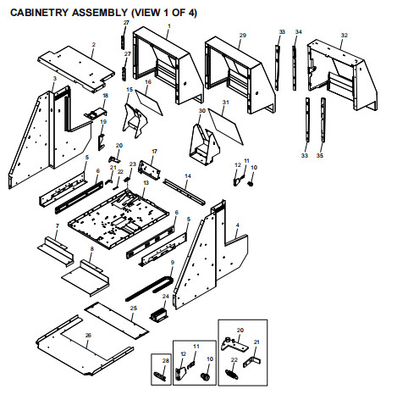

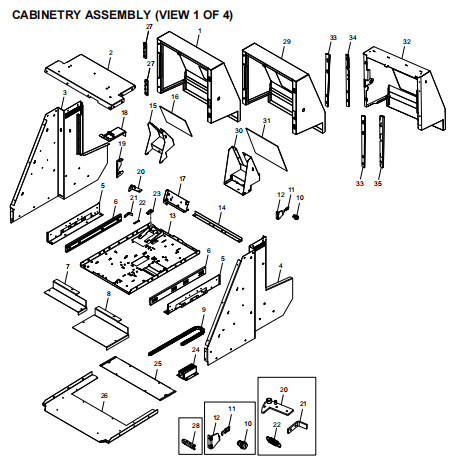

CABINETRY ASSEMBLY (VIEW 1 OF 4)
1 445-0738536 DOOR ASSY (STD) - TOP BOX
2 445-0749041 PANEL ASSY (STD) - TOP BOX TOP
3 445-0760259 PANEL ASSY (STD) - TOP BOX LH
4 445-0760243 PANEL ASSY (STD) - TOP BOX RH
5 445-0749051 MTG BRKT - MODULE TRAY SLIDE
* 6 009-0013958 SLIDE - MODULE TRAY
7 445-0734881 S2 COWL PLATE - SHORT
8 445-0738570 S2 COWL PLATE - STD
9 009-0025627 CABLE CHAIN - 16.5 x 15.5
* 10 009-0022504 SLAM ACTION LOCK, CH 751 KEY
11 445-0738540 LOCK CAM - TOP BOX DOOR
12 445-0738541 LOCK LATCH - TOP BOX DOOR
12 445-0781666 LOCK LATCH - TOP BOX DOOR (POSTE ITALIANE)
13 445-0760503 MODULE TRAY ASSY - TOP BOX
14 445-0760398 MODULE TRAY - STIFFENER
15 445-0748623 MTG BRKT - COP
16 445-0740273 WINDOW - DOOR
17 445-0752500 MTG BRKT ASSY - MINI MISC
17 445-0781338 MTG BRKT ASSY - MINI MISC (POSTE ITALIANE)
18 445-0738542 MTG BRKT - PC CORE
18 445-0775688 MTG BRKT - PC CORE - DOUBLE PO
19 445-0749822 SUPPORT PLATE - PC CORE
20 445-0708307 LATCH ASSY
21 445-0739913 BRACKET - HOOK
22 445-0589073 TENSION SPRING
23 445-0742397 STAMP PRINTER MTG
24 445-0727550 BRKT - POWER INLET
25 445-0749044 SLEEVE BOTTOM CONNECTION PLATE (STD)
26 445-0749046 SLEEVE BOTTOM PANELS (STD)
27 445-0730351 COSMETIC DOOR HINGE
28 445-0740058 MTG - CASH EXIT MEI
29 445-0768961 DOOR ASSY (STD) - TOP BOX - GOP
30 445-0770646 ASSEMBLY MTG BKT GOP
31 445-0705803 GOP WINDOW
32 445-0781569 DOOR ASSY -TOP BOX (POSTE ITALIANE)
33 445-0782182 DOOR HINGE (POSTE ITALIANE)
34 445-0781568 INTERMEDIATE BRKT-TOPBOX (POSTE ITALIANE)
35 445-0781676 INTERMEDIATE BRKT-TOPBOX (POSTE ITALIANE)

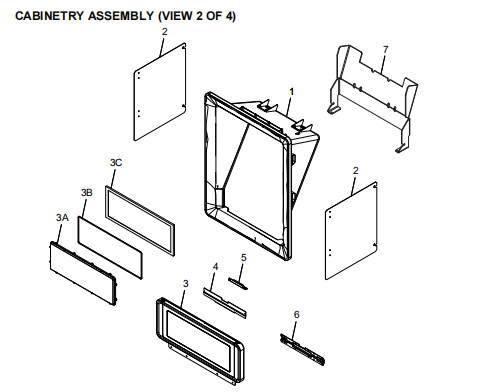

CABINETRY ASSEMBLY (VIEW 2 OF 4)
1 445-0740517 COLLAR MOULDING ASSY - TASK LIGHT
1 445-0778442 COLLAR MOULDING ASSY - TASK LIGHT (POSTE ITALIANE)
2 445-0749048 COLLAR CONNECTION PLATE (STD)
3 445-0752043 ADVERT PANEL ASSEMBLY
3 445-0778413 ADVERT PANEL ASSEMBLY (POSTE ITALIANE)
3A 445-0688763 WINDOW - ADVERT (CLEAR)
* 3B 445-0711441 GASKET - ADVERT WINDOW
* 3C 009-0021970 CCFL ADVERT AND ANGLED TASK LIGHT VW3
4 445-0749550 TASK LIGHT MTG COVER
5 445-0749549 TASK LIGHT MTG BRACKET
6 445-0757584 TASK LIGHT MTG PLATE
7 445-0772439 PLATE ASSY - SECURITY PAINTED

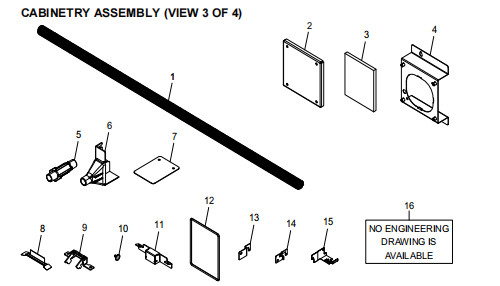

CABINETRY ASSEMBLY(VIEW 3 OF 4)
1 445-0750196 DUCTING (ID 20MM), 370MM
1 445-0750197 DUCTING (ID 20MM), 860MM
2 445-0743006 MESH - AIR FILTER
3 009-0028658 AIR FILTER - 8MM THICK
4 445-0752571 120x120 BLOWER MOUNTING ASSY
5 445-0740907 ENCLOSURE HOSE JOINT
6 445-0740966 FAN FUNNEL
7 445-0742864 SPEAKER COVER
8 445-0749733 RAIN GUIDE - CARD READER
9 445-0761884 ASSY - CARD RESTRICTOR
10 445-0742624 SAFE PLUG (WHITE)
11 445-0748911 CASHCAM MTG BRACKET - TOP
12 445-0717718 SEAL - 3.2MM O-RING UEPP
13 445-0759586 LIGHT SENSOR MTG BKT - FDK DISPLAY
14 445-0759587 LIGHT SENSOR MTG BKT - TOUCH DISPLAY
15 445-0781040 ASSY - MTG - LIGHT SENSOR
* 16 009-0028647 FAN, RADIAL, 120X32MM, 24VDC

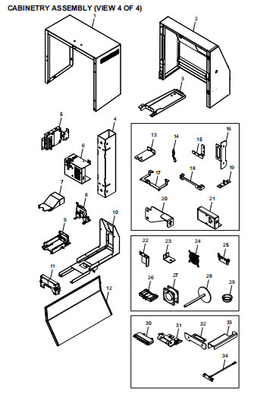

CABINETRY ASSEMBLY (VIEW 4 OF 4)
1 445-0760507 INTERMEDIATE HOUSING PAINTED (STD)
2 445-0760404 DOOR ASSY (STD) - TOP BOX
3 445-0760504 DUAL ROLL PRINTER REAR SUPPORT
4 445-0759783 TRANSPORTATION FEET (WD 450) - ASSY (STD)
5 445-0764361 ASSY - REMOTE I/O MTG
6 445-0762175 PSU COVER ASSY - COMPACT
7 445-0760400 PLATE - FAN BOX LID
8 445-0762432 BRACKET ASSY - DIP SPS MOUNT
9 445-0762457 BRACKET ASSY - DIP SUPPORT
10 445-0760408 MTG BRKT - COP ASSY
11 445-0753656 BRACKET ASSY - USB HUB
12 445-0647901 LIGHT DIFFUSER (CAE) (CLEAR)
13 445-0727531 RISER CARD BRACKET
* 14 445-0749131 GROUNDING STRAP
15 445-0757505 CAMERA TRANSFORMER MTG BRACKET
16 445-0760388 MTG - CAMERA ENABLE
17 445-0757460 BKT - DIP STRAIN RELIEF
18 445-0755985 GUIDE - CARD READER
19 445-0760514 MOUNTING BRACKET ASSY
20 445-0760643 LATCH LEVER - MODULE TRAY
21 445-0755977 INTERLOCK COVER BRACKET
22 445-0755745 BRACKET MOTOR PROTECTOR
23 445-0762769 BRACE - TOP-BOX DUAL ROLL
24 009-0017693 FAN GUARD
25 445-0762193 MEI HOLDER
26 445-0763040 DRAIN TRAY ASSY
27 009-0022892 FAN 24 V DC
28 445-0754969 KEYHOLE COVER - LONG BLACK
29 009-0029806 PLUG - PLASTIC DIA 26.6
30 445-0762632 MOULDING - USB STRAIN RELIEF CLAMP
31 445-0763107 BRACKET - CCR MTG (HORZ)
32 445-0764370 ALARMS MTG BRACKET
33 445-0762400 DISPLAY HANDLE - MFR AUTO-SCALING
34 445-0782290 BRACKET ASSY - EARTH BRAID BCR
