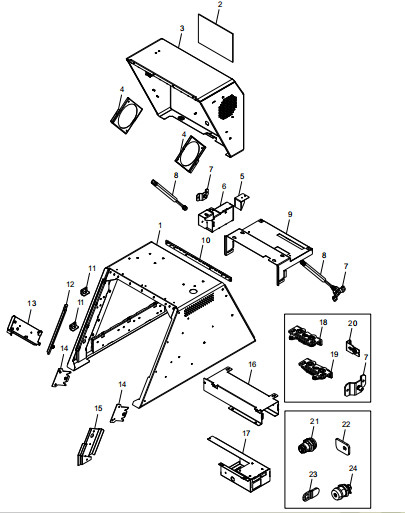

CABINETRY ASSEMBLY (VIEW 1 OF 5)
1 445-0753350 TOPBOX ASSY (R/A) - PAINTED
2 445-0740273 WINDOW - DOOR
3 445-0753495 REAR DOOR - TOPBOX PAINTED
4 445-0740921 BRACKET - FAN BOX
5 445-0753125 SWITCH TRIGGER - RA DOOR
6 445-0753051 SWITCH BOX
7 445-0750883 GAS SPRING MTG BRKT ASSY
* 8 009-0029871 GAS SPRING
9 445-0750105 PC CORE MTG BRKT - RA
10 445-0750992 HINGE ASSY - PAINTED
11 445-0749228 FASCIA STAY BAR - MTG BRKT
12 445-0753214 STAYBAR ASSY - FASCIA RA
13 445-0752500 MTG BRKT ASSY - MINI MISC
14 445-0753032 SECURING PLATE - FASCIA RA
15 445-0753905 CABLE CHANNEL R/A - UPPER
16 445-0754000 PSU COVER (600W)
17 445-0753974 PSU COVER ASSY
18 009-0029455 ROTARY LATCH RH - STANDARD LC
19 009-0029456 ROTARY LATCH LH - STANDARD LC
20 445-0749222 LOCK SIDE MTG BRACKET
* 21 009-0023553 SLAM ACTION LOCK, CH 751 KEY
22 445-0749221 LOCK CAM BRACKET
* 23 445-0754009 CAM LOCK - SLAM ACTION LOCK, CH 751 KEY
* 24 009-0027833 CABINET LOCK - UL437 CAM LOCK
